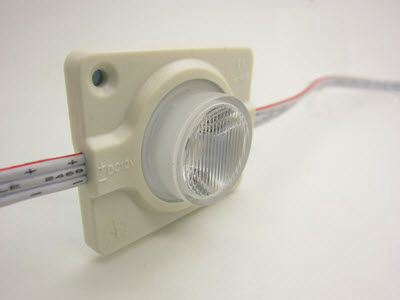

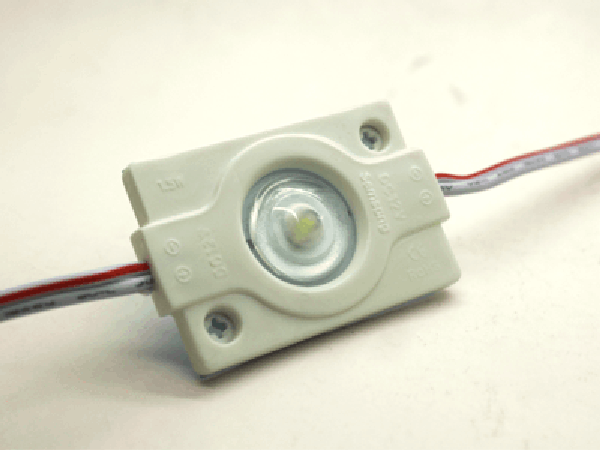

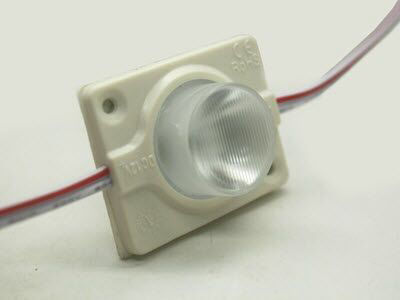

SMD 3535 high power module
Constant current DC 12v
View Angle: 10 *70 degree
Lumen: 200-230lm
Application: Double side light box
Dimension: 43.6 * 36.6* 13.7mm

SMD 2835 high power module
Constant Voltage DC 12v
View Angle: 15 *60 degree
Lumen: 100-130lm
Application: Double side light box
Dimension: 39.6*30.6*4.5mm

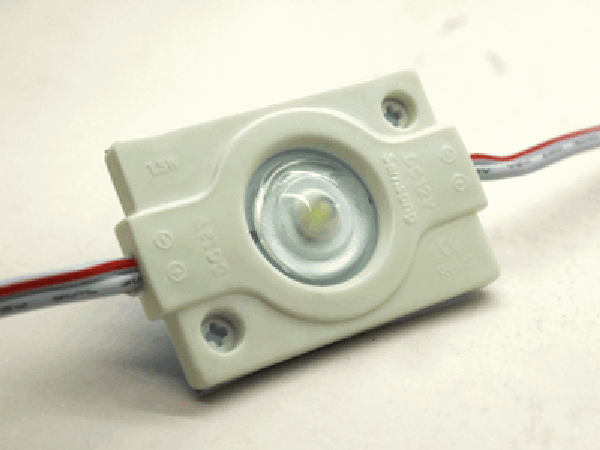

SMD 3535 high power module
Constant current DC 12v
View Angle: 170 degree
Lumen: 200-230lm
Application: Single side light box
Dimension: 43.6 * 36.6* 13.7mm

SMD 2835 high power module
Constant Voltage DC 12v
View Angle: 170 degree
Lumen: 100-130lm
Application: Single side light box
Dimension:43.6 * 36.6* 13.7mm

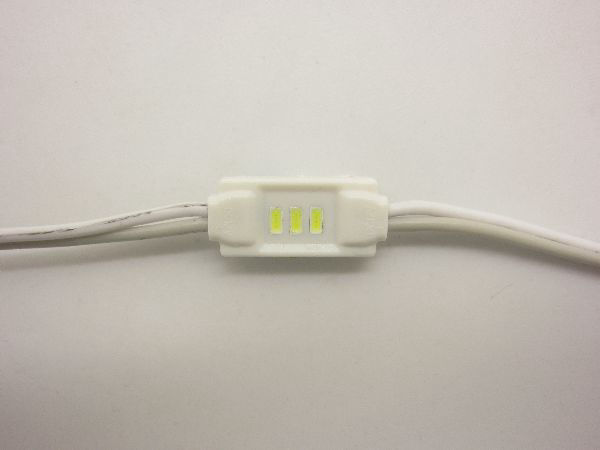

SMD 3014 Mini injection modue
Constant voltage DC12v
View Angle: 120 degree
Lumen: 35-40lm
Dimension: 18*8*3 mm

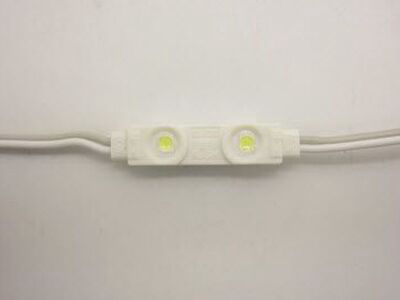

SMD 3528 Waterproof Mini modue
Constant voltage DC12V
View Angle: 120 degree
Lumen: 15-20lm
Dimension: 26*7*3 mm

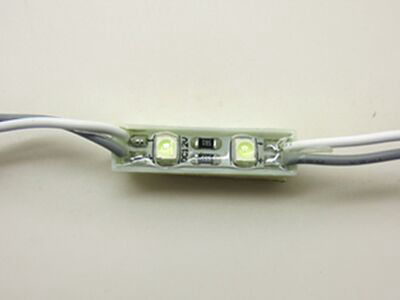

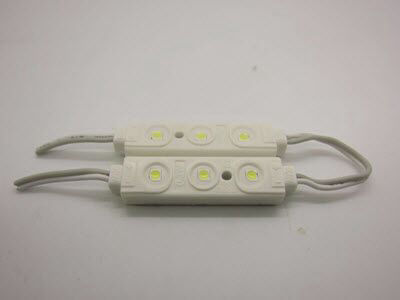

SMD 3528 Mini injection modue
Constant voltage DC12v
View Angle: 120 degree
Lumen: 15-20lm
Dimension: 32*7*5 mm

SMD 3528 Mini injection modue
Constant voltage DC12v
View Angle: 120 degree
Lumen: 25-30lm
Dimension: 44*11*5 mm

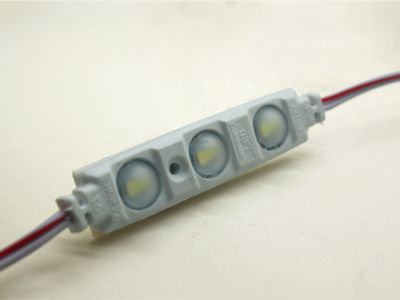

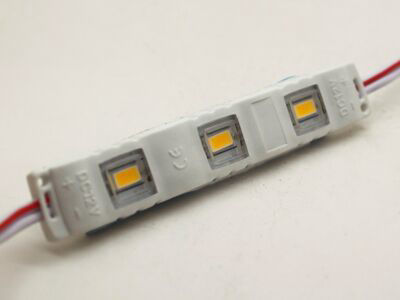

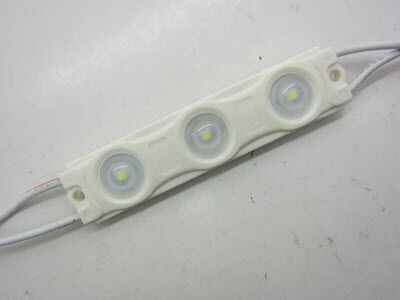

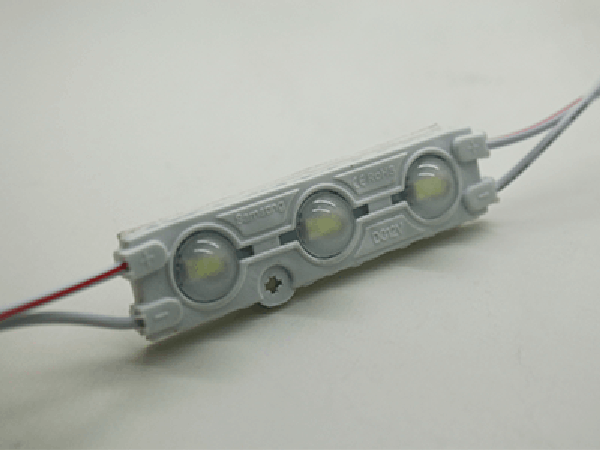

SMD 5730 injection module with lens
Constant voltage DC 12v
View Angle: 120 degree
Lumen: 150-165lm
Dimension: 68 * 16* 6mm

SMD 5730 injection module with lens
Constant voltage DC 12v
View Angle: 120 degree
Lumen: 150-165lm
Dimension:75*16*7.5mm

SMD 5730 injection module with Lens
Constant voltage DC 12v
View Angle: 120 degree
Lumen: 150-165lm
Dimension: 77 * 7* 6mm

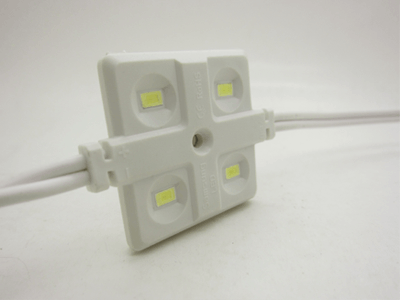

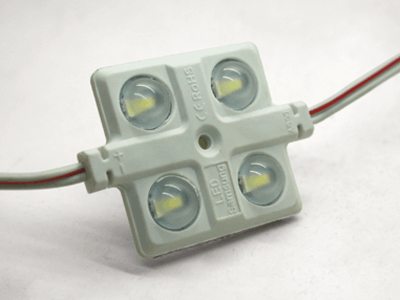

SMD 5730 injection module

Constant voltage DC 12v
View Angle: 120 degree
Lumen: 200-230lm
Dimension: 37 * 37* 6mm

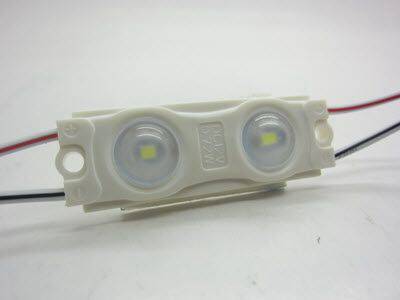

SMD 2835 injection module with lens
Constant voltage DC 12v
View Angle: 120 degree
Lumen: 80-90lm
Dimension: 52 * 18* 7.5mm

SMD 2835 injection module with lens
Constant voltage DC 12v
View Angle: 120 degree
Lumen: 150-165lm
Dimension: 80 * 18* 7.5mm

SMD 5730 injection module with Color: White
Constant voltage DC 12v
View Angle: 120 degree
Lumen: 150-165lm
Dimension: 37 * 37* 6mm

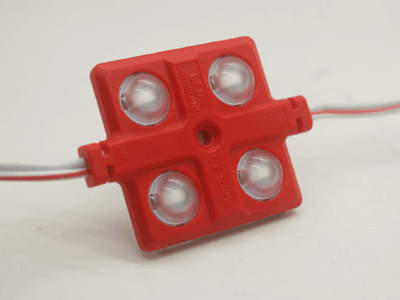

SMD 5730 injection module with Color: Red
Constant voltage DC 12v
View Angle: 120 degree
MCD: 2200-2600mcd/LED
Dimension: 37 * 37* 6mm

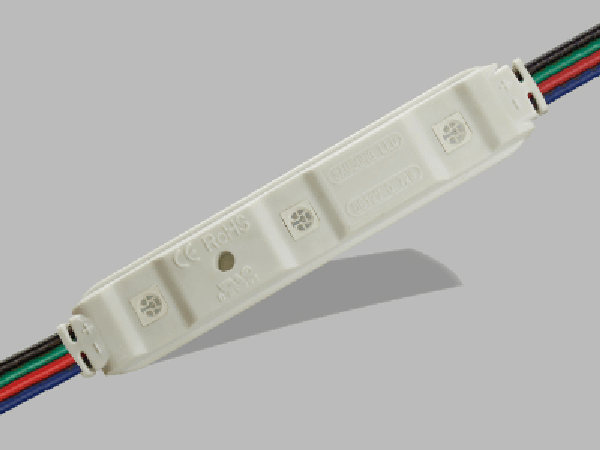

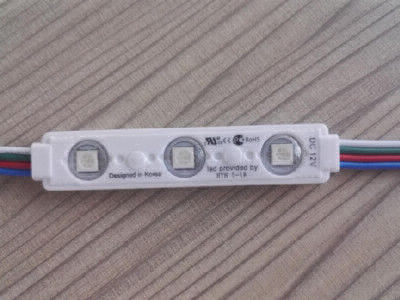

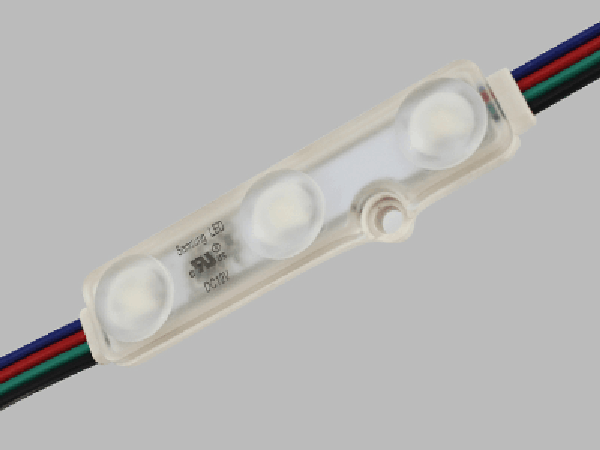

SMD 5050 injection module with lens
Constant voltage DC 12v
View Angle: 160 degree
Power: 0.72W
Dimension: 75 * 15* 7mm

SMD 5050 injection module with lens
Constant voltage DC 12v
View Angle: 160 degree
Power: 0.72W
Dimension: 83 * 15* 6mm

SMD 5050 injection module with lens
Constant voltage DC 12v
View Angle: 160 degree
Power: 0.72W
Dimension: 72 * 15* 7mm

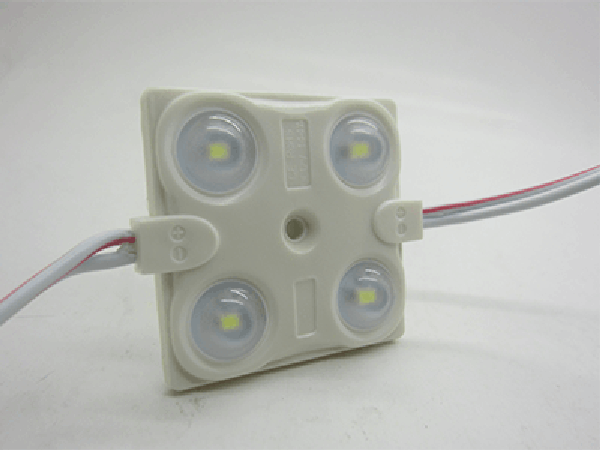

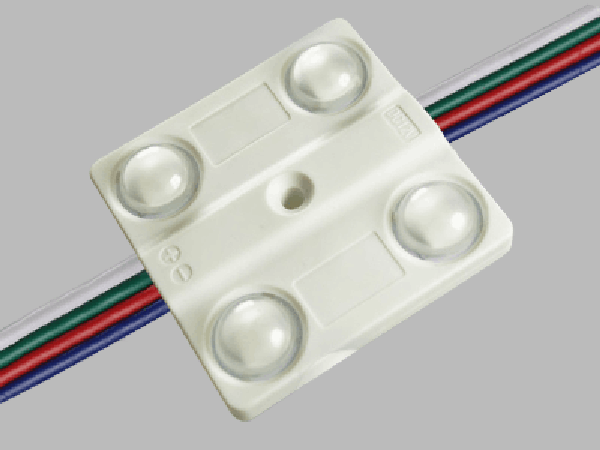

SMD 5050 injection module with lens
Constant voltage DC 12v
View Angle: 160 degree
Power: 1.44W
Dimension: 39 * 39* 7mm

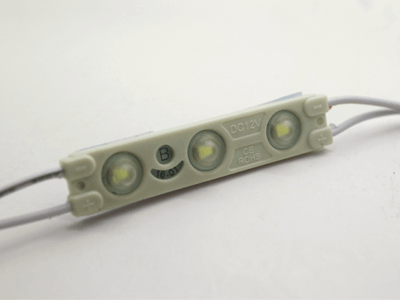

SMD 2835 injection with lens
Constant voltage DC12v
View Angle: 120 degree
Lumen: 30-35lm
Dimension: 28.5*18.5mm

SMD 2835 injection with lens
Constant voltage DC12v
View Angle: 120 degree
Lumen: 60-66lm
Dimension: 47.8*15.8mm

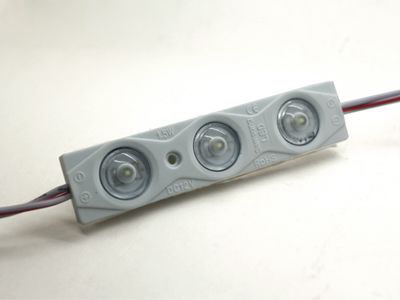

SMD 2835 injection with lens
Constant voltage DC12v
View Angle: 120 degree
Lumen: 90-99lm
Dimension: 68.8*15.8mm

SMD 2835 injection with lens
Constant voltage DC12v
View Angle: 120 degree
Lumen: 132-140lm
Dimension: 37*37*6.6mm
